7  Introduction to sf and stars

This chapter introduces R packages sf and stars. sf provides a table format for simple features, where feature geometries are stored in a list-column. R package stars was written to support raster and vector data cubes (Chapter 6), supporting raster layers, raster stacks and feature time series as special cases. sf first appeared on CRAN in 2016, stars in 2018. Development of both packages received support from the R Consortium as well as strong community engagement. The packages were designed to work together. Functions or methods operating on sf or stars objects start with st_, making it easy to recognise them or to search for them when using command line completion.

7.1 Package sf

Intended to succeed and replace R packages sp, rgeos and the vector parts of rgdal, R package sf (Pebesma 2018) was developed to move spatial data analysis in R closer to standards-based approaches seen in the industry and open source projects, to build upon more modern versions of the open source geospatial software stack (Figure 1.7), and to allow for integration of R spatial software with the tidyverse (Wickham et al. 2019), if desired.

To do so, R package sf provides simple features access (Herring et al. 2011), natively, to R. It provides an interface to several tidyverse packages, in particular to ggplot2, dplyr, and tidyr. It can read and write data through GDAL, execute geometrical operations using GEOS (for projected coordinates) or s2geometry (for ellipsoidal coordinates), and carry out coordinate transformations or conversions using PROJ. External C++ libraries are interfaced using R package Rcpp (Eddelbuettel 2013).

Package sf represents sets of simple features in sf objects, a sub-class of a data.frame or tibble. sf objects contain at least one geometry list-column of class sfc, which for each element contains the geometry as an R object of class sfg. A geometry list-column acts as a variable in a data.frame or tibble, but has a more complex structure than basic vectors such as numeric or character variables Section B.3.

An sf object has the following metadata:

  • the name of the (active) geometry column, held in attribute sf_column
  • for each non-geometry variable, the attribute-geometry relationship (Section 5.1), held in attribute agr

An sfc geometry list-column is extracted from an sf object with st_geometry and has the following metadata:

  • coordinate reference system held in attribute crs
  • bounding box held in attribute bbox
  • precision held in attribute precision
  • number of empty geometries held in attribute n_empty

These attributes may best be accessed or set by using functions like st_bbox, st_crs, st_set_crs, st_agr, st_set_agr, st_precision, and st_set_precision.

Geometry columns in sf objects can be set or replaced using st_geometry<- or st_set_geometry.

Creation

An sf object can be created from scratch by

library(sf)
# Linking to GEOS 3.11.1, GDAL 3.6.2, PROJ 9.1.1; sf_use_s2() is TRUE
p1 <- st_point(c(7.35, 52.42))
p2 <- st_point(c(7.22, 52.18))
p3 <- st_point(c(7.44, 52.19))
sfc <- st_sfc(list(p1, p2, p3), crs = 'OGC:CRS84')
st_sf(elev = c(33.2, 52.1, 81.2),
      marker = c("Id01", "Id02", "Id03"), geom = sfc)
# Simple feature collection with 3 features and 2 fields
# Geometry type: POINT
# Dimension:     XY
# Bounding box:  xmin: 7.22 ymin: 52.2 xmax: 7.44 ymax: 52.4
# Geodetic CRS:  WGS 84
#   elev marker              geom
# 1 33.2   Id01 POINT (7.35 52.4)
# 2 52.1   Id02 POINT (7.22 52.2)
# 3 81.2   Id03 POINT (7.44 52.2)
import geopandas as gpd
from shapely.geometry import Point

p1 = Point(7.35, 52.42)
p2 = Point(7.22, 52.18)
p3 = Point(7.44, 52.19)

gdf = gpd.GeoDataFrame(
    {'elev': [33.2, 52.1, 81.2], 'marker': ["Id01", "Id02", "Id03"]},
    geometry=[p1, p2, p3],
    crs='OGC:CRS84'
)
print(gdf)
#    elev marker                  geometry
# 0  33.2   Id01  POINT (7.35000 52.42000)
# 1  52.1   Id02  POINT (7.22000 52.18000)
# 2  81.2   Id03  POINT (7.44000 52.19000)

Figure 7.1: components of an sf object

Figure 7.1 gives an explanation of the components printed. Rather than creating objects from scratch, spatial data in R are typically read from an external source, which can be:

  • external file
  • table (or set of tables) in a database
  • request to a web service
  • dataset held in some form in another R package

The next section introduces reading from files. Section 9.1 discusses handling of datasets too large to fit into working memory.

Reading and writing

Reading datasets from an external “data source” (file, web service, or even string) is done using st_read:

library(sf)
(file <- system.file("gpkg/nc.gpkg", package = "sf"))
# [1] "/home/edzer/R/x86_64-pc-linux-gnu-library/4.3/sf/gpkg/nc.gpkg"
nc <- st_read(file)
# Reading layer `nc.gpkg' from data source
#   `/home/edzer/R/x86_64-pc-linux-gnu-library/4.3/sf/gpkg/nc.gpkg'
#   using driver `GPKG'
# Simple feature collection with 100 features and 14 fields
# Geometry type: MULTIPOLYGON
# Dimension:     XY
# Bounding box:  xmin: -84.3 ymin: 33.9 xmax: -75.5 ymax: 36.6
# Geodetic CRS:  NAD27
import geopandas as gpd

nc = gpd.read_file("https://github.com/r-spatial/sf/raw/main/inst/gpkg/nc.gpkg")

Here, the file name and path file is read from the sf package, which has a different path on every machine, and hence is guaranteed to be present on every sf installation.

Command st_read has two arguments: the data source name (dsn) and the layer. In the example above, the geopackage (GPKG) file contains only a single layer that is being read. If it had contained multiple layers, then the first layer would have been read and a warning would have been emitted. The available layers of a dataset can be queried by

st_layers(file)
# Driver: GPKG
# Available layers:
#   layer_name geometry_type features fields crs_name
# 1    nc.gpkg Multi Polygon      100     14    NAD27

Simple feature objects can be written with st_write, as in

(file = tempfile(fileext = ".gpkg"))
# [1] "/tmp/Rtmp7fOaVK/file21c601e2b81d7.gpkg"
st_write(nc, file, layer = "layer_nc")
# Writing layer `layer_nc' to data source
#   `/tmp/Rtmp7fOaVK/file21c601e2b81d7.gpkg' using driver `GPKG'
# Writing 100 features with 14 fields and geometry type Multi Polygon.

where the file format (GPKG) is derived from the file name extension. Using argument append, st_write can either append records to an existing layer or replace it; if unset, it will err if a layer already exists. The tidyverse-style write_sf will replace silently if append has not been set. Layers can also be deleted using st_delete, which is convenient in particular when they are associated with tables in a database.

For file formats supporting a WKT2 coordinate reference system, sf_read and sf_write will read and write it. For simple formats such as csv this will not work. The shapefile format supports only a very limited encoding of the CRS.

Subsetting

A very common operation is to subset objects; base R can use [ for this. The rules that apply to data.frame objects also apply to sf objects: records 2-5 and columns 3-7 are selected by

nc[2:5, 3:7]

but with a few additional features, in particular:

  • the drop argument is by default FALSE meaning that the geometry column is always selected, and an sf object is returned; when it is set to TRUE and the geometry column is not selected, it is dropped and a data.frame is returned
  • selection with a spatial (sf, sfc or sfg) object as first argument leads to selection of the features that spatially intersect with that object (see next section); other predicates than intersects can be chosen by setting parameter op to a function such as st_covers or any other binary predicate function listed in Section 3.2.2.

Binary predicates

Binary predicates like st_intersects, st_covers and such (Section 3.2.2) take two sets of features or feature geometries and return for all pairs whether the predicate is TRUE or FALSE. For large sets this would potentially result in a huge matrix, typically filled mostly with FALSE values and for that reason a sparse representation is returned by default:

nc5 <- nc[1:5, ]
nc7 <- nc[1:7, ]
(i <- st_intersects(nc5, nc7))
# Sparse geometry binary predicate list of length 5, where the
# predicate was `intersects'
#  1: 1, 2
#  2: 1, 2, 3
#  3: 2, 3
#  4: 4, 7
#  5: 5, 6
import geopandas as gpd

nc = gpd.read_file("https://github.com/r-spatial/sf/raw/main/inst/gpkg/nc.gpkg")

nc5 = nc[:5]
nc7 = nc[:7]

i = nc5.intersects(nc7)
# /home/edzer/.local/lib/python3.10/site-packages/geopandas/base.py:31: UserWarning: The indices of the two GeoSeries are different.
#   warn("The indices of the two GeoSeries are different.")
i
# 0     True
# 1     True
# 2     True
# 3     True
# 4     True
# 5    False
# 6    False
# dtype: bool
Code
plot(st_geometry(nc7))
plot(st_geometry(nc5), add = TRUE, border = "brown")
cc = st_coordinates(st_centroid(st_geometry(nc7)))
text(cc, labels = 1:nrow(nc7), col = "blue")

Figure 7.2: First seven North Carolina counties
Code
import matplotlib.pyplot as plt
import geopandas as gpd

nc = gpd.read_file("https://github.com/r-spatial/sf/raw/main/inst/gpkg/nc.gpkg")

nc5 = nc[:5]
nc7 = nc[:7]

i = nc5.intersects(nc7)
# /home/edzer/.local/lib/python3.10/site-packages/geopandas/base.py:31: UserWarning: The indices of the two GeoSeries are different.
#   warn("The indices of the two GeoSeries are different.")
ax = nc7.plot()
nc5.plot(ax=ax, color='brown')

for x, y, label in zip(nc7.geometry.centroid.x, nc7.geometry.centroid.y, nc7.index):
    plt.text(x, y, label, fontsize=12)

plt.axis(False)
# (-82.03946952819824, -75.47475929260254, 36.04697723388672, 36.61549072265625)
plt.show()

First seven North Carolina counties

Figure 7.2 shows how the intersections of the first five with the first seven counties can be understood. We can transform the sparse logical matrix into a dense matrix by

as.matrix(i)
#       [,1]  [,2]  [,3]  [,4]  [,5]  [,6]  [,7]
# [1,]  TRUE  TRUE FALSE FALSE FALSE FALSE FALSE
# [2,]  TRUE  TRUE  TRUE FALSE FALSE FALSE FALSE
# [3,] FALSE  TRUE  TRUE FALSE FALSE FALSE FALSE
# [4,] FALSE FALSE FALSE  TRUE FALSE FALSE  TRUE
# [5,] FALSE FALSE FALSE FALSE  TRUE  TRUE FALSE
import numpy as np

matrix = np.matrix(i.values)
matrix
# matrix([[ True,  True,  True,  True,  True, False, False]])

The number of counties that each of nc5 intersects with is

lengths(i)
# [1] 2 3 2 2 2

and the other way around, the number of counties in nc5 that intersect with each of the counties in nc7 is

lengths(t(i))
# [1] 2 3 2 1 1 1 1

The object i is of class sgbp (sparse geometrical binary predicate), and is a list of integer vectors, with each element representing a row in the logical predicate matrix holding the column indices of the TRUE values for that row. It further holds some metadata like the predicate used, and the total number of columns. Methods available for sgbp objects include

methods(class = "sgbp")
#  [1] as.data.frame as.matrix     coerce        dim
#  [5] initialize    Ops           print         show
#  [9] slotsFromS3   t
# see '?methods' for accessing help and source code

where the only Ops method available is !, the negation operation.

tidyverse

The tidyverse package loads a collection of data science packages that work well together (Wickham and Grolemund 2017; Wickham et al. 2019). Package sf has tidyverse-style read and write functions, read_sf and write_sf that

  • return a tibble rather than a data.frame,
  • do not print any output, and
  • overwrite existing data by default.

Further tidyverse generics with methods for sf objects include filter, select, group_by, ungroup, mutate, transmute, rowwise, rename, slice, summarise, distinct, gather, pivot_longer, spread, nest, unnest, unite, separate, separate_rows, sample_n, and sample_frac. Most of these methods simply manage the metadata of sf objects and make sure the geometry remains present. In case a user wants the geometry to be removed, one can use st_drop_geometry or simply coerce to a tibble or data.frame before selecting:

library(tidyverse) |> suppressPackageStartupMessages()
nc |> as_tibble() |> select(BIR74) |> head(3)
# # A tibble: 3 × 1
#   BIR74
#   <dbl>
# 1  1091
# 2   487
# 3  3188
nc[['BIR74']].head(3)
#     BIR74
# 0  1091.0
# 1   487.0
# 2  3188.0

The summarise method for sf objects has two special arguments:

  • do_union (default TRUE) determines whether grouped geometries are unioned on return, so that they form a valid geometry
  • is_coverage (default FALSE) in case the geometries grouped form a coverage (do not have overlaps), setting this to TRUE speeds up the unioning

The distinct method selects distinct records, where st_equals is used to evaluate distinctness of geometries.

filter can be used with the usual predicates; when one wants to use it with a spatial predicate, for instance to select all counties less than 50 km away from Orange County, one could use

orange <- nc |> dplyr::filter(NAME == "Orange")
wd <- st_is_within_distance(nc, orange,
                            units::set_units(50, km))
o50 <- nc |> dplyr::filter(lengths(wd) > 0)
nrow(o50)
# [1] 17

(where we use dplyr::filter rather than filter to avoid confusion with filter from base R.)

Figure 7.3 shows the results of this analysis, and in addition a buffer around the county borders. Note that this buffer serves for illustration: it was not used to select the counties.

Code
og <- st_geometry(orange)
buf50 <- st_buffer(og, units::set_units(50, km))
all <- c(buf50, st_geometry(o50))
plot(st_geometry(o50), lwd = 2, extent = all)
plot(og, col = 'orange', add = TRUE)
plot(buf50, add = TRUE, col = NA, border = 'brown')
plot(st_geometry(nc), add = TRUE, border = 'grey')

Figure 7.3: Orange County (orange), counties within a 50 km radius (black), a 50~km buffer around Orange County (brown), and remaining counties (grey)

7.2 Spatial joins

In regular (left, right, or inner) joins, joined records from a pair of tables are reported when one or more selected attributes match (are identical) in both tables. A spatial join is similar, but the criterion to join records is not equality of attributes but a spatial predicate. This leaves a wide variety of options in order to define spatially matching records, using binary predicates listed in Section 3.2.2. The concepts of “left”, “right”, “inner”, or “full” joins remain identical to the non-spatial join as the options for handling records that have no spatial match.

When using spatial joins, each record may have several matched records, yielding a large result table. A way to reduce this complexity may be to select from the matching records the one with the largest overlap with the target geometry. An example of this is shown (visually) in Figure 7.4; this is done using st_join with argument largest = TRUE.

Code
# example of largest = TRUE:
system.file("shape/nc.shp", package="sf") |>
    read_sf() |>
    st_transform('EPSG:2264') -> nc
gr <- st_sf(
         label = apply(expand.grid(1:10, LETTERS[10:1])[,2:1], 1, paste0, collapse = ""),
         geom = st_make_grid(nc))
gr$col <- sf.colors(10, categorical = TRUE, alpha = .3)
# cut, to verify that NA's work out:
gr <- gr[-(1:30),]
suppressWarnings(nc_j <- st_join(nc, gr, largest = TRUE))
par(mfrow = c(2,1), mar = rep(0,4))
plot(st_geometry(nc_j), border = 'grey')
plot(st_geometry(gr), add = TRUE, col = gr$col)
text(st_coordinates(st_centroid(st_geometry(gr))), labels = gr$label, cex = .85)
# the joined dataset:
plot(st_geometry(nc_j), border = 'grey', col = nc_j$col)
text(st_coordinates(st_centroid(st_geometry(nc_j))), labels = nc_j$label, cex = .7)
plot(st_geometry(gr), border = '#88ff88aa', add = TRUE)

Figure 7.4: Example of st_join with largest = TRUE: the label of the polygon in the top figure with the largest intersection with polygons in the bottom figure is assigned to the polygons of the bottom figure.

Another way to reduce the result set is to use aggregate after a join, to merge all matching records, and union their geometries; see Section 5.4.

Sampling, gridding, interpolating

Several convenience functions are available in package sf, some of which will be discussed here. Function st_sample generates a sample of points randomly sampled from target geometries, where target geometries can be point, line, or polygon geometries. Sampling strategies can be (completely) random, regular, or (with polygons) triangular. Chapter 11 explains how spatial sampling (or point pattern simulation) methods available in package spatstat are interfaced through st_sample.

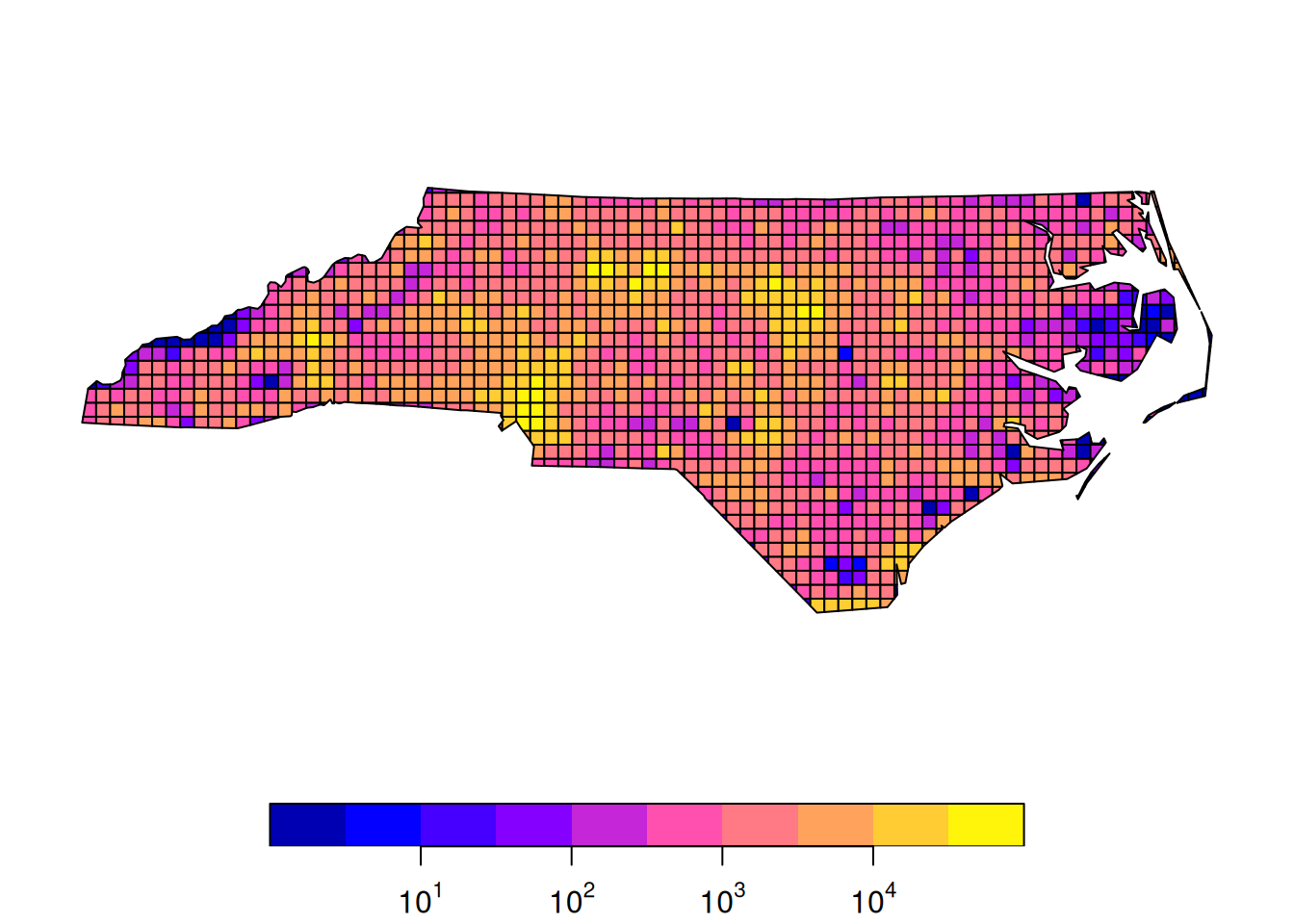

Function st_make_grid creates a square, rectangular, or hexagonal grid over a region, or points with the grid centres or corners. It was used to create the rectangular grid in Figure 7.4.

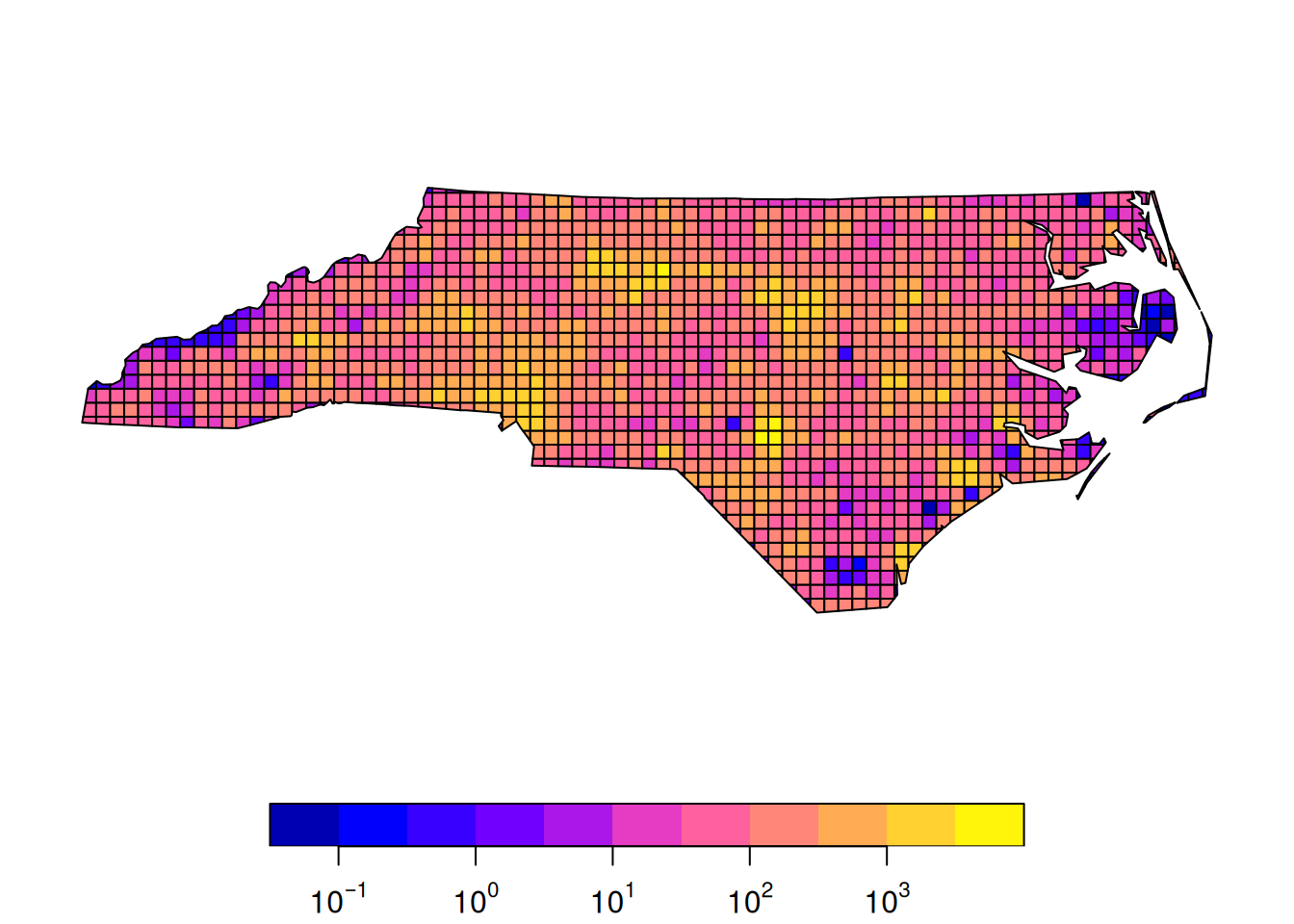

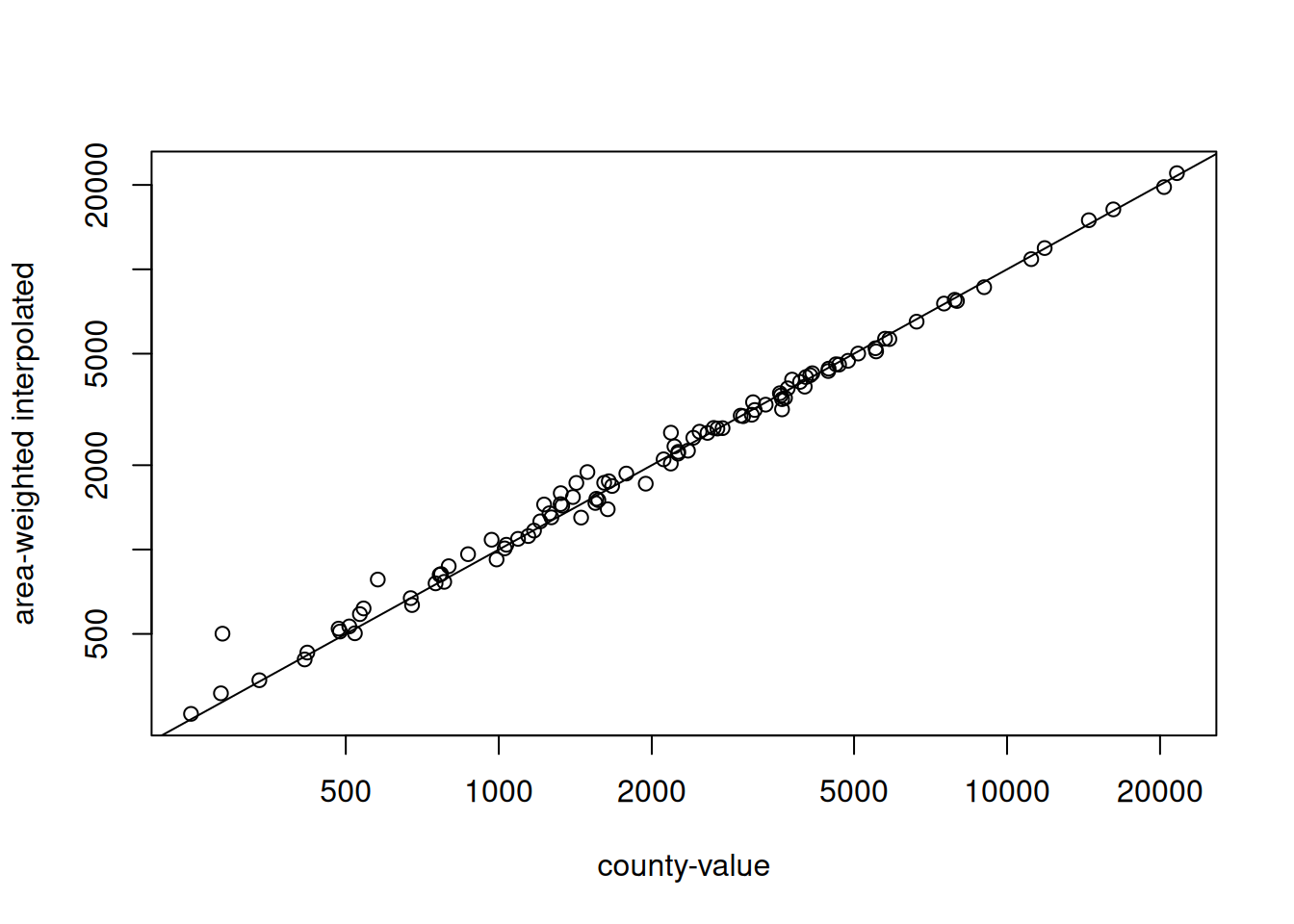

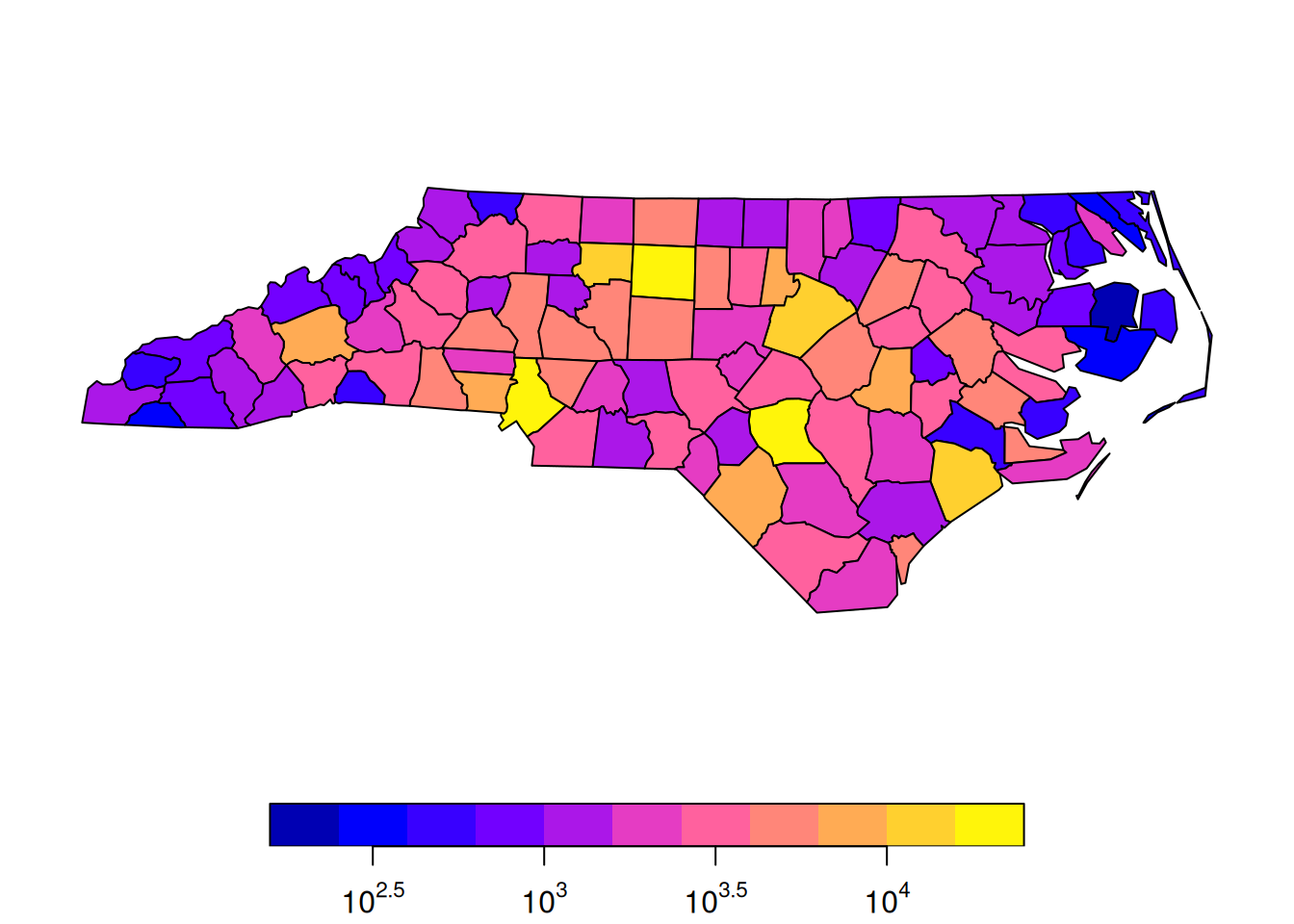

Function st_interpolate_aw “interpolates” area values to new areas, as explained in Section 5.3, both for intensive and extensive variables.

7.3 Ellipsoidal coordinates

Unprojected data have ellipsoidal coordinates, expressed in degrees east and north. As explained in Section 4.1, “straight” lines between points are the curved shortest paths (“geodesic”). By default, sf uses geometrical operations from the s2geometry library, interfaced through the s2 package (Dunnington, Pebesma, and Rubak 2023), and we see for instance that the point

"POINT(50 50.1)" |> st_as_sfc(crs = "OGC:CRS84") -> pt
import geopandas as gpd
from shapely.geometry import Point, Polygon

pt = gpd.GeoSeries([Point(50, 50.1)])
pt = pt.set_crs("OGC:CRS84")

falls inside the polygon:

"POLYGON((40 40, 60 40, 60 50, 40 50, 40 40))" |>
  st_as_sfc(crs = "OGC:CRS84") -> pol
st_intersects(pt, pol)
# Sparse geometry binary predicate list of length 1, where the
# predicate was `intersects'
#  1: 1
import geopandas as gpd
from shapely.geometry import Point, Polygon

pol = gpd.GeoSeries([Polygon([(40,40), (60,40), (60,50), (40,50), (40,40)])])
pol = pol.set_crs("OGC:CRS84")

as illustrated by Figure 7.5 (left: straight lines on an orthographic projection centred at the plot area).

Code
par(mfrow = c(1, 2))
par(mar = c(2.1, 2.1, 1.2, .5))
ortho <- st_crs("+proj=ortho +lon_0=50 +lat_0=45")
pol |> st_transform(ortho) |> plot(axes = TRUE, graticule = TRUE,
                                   main = 's2geometry')
pt |> st_transform(ortho) |> plot(add = TRUE, pch = 16, col = 'red')
# second plot:
plot(pol, axes = TRUE, graticule = TRUE, main = 'GEOS')
plot(pt, add = TRUE, pch = 16, col = 'red')

Figure 7.5: Intersection depends on whether we use geodesics/great circle arcs (left: s2) or Cartesian coordinates (right)
Code
import geopandas as gpd
import matplotlib.pyplot as plt
from descartes import PolygonPatch
from shapely.geometry import Point, Polygon

point = Point(50, 50.1)
polygon = Polygon([(40, 40), (60, 40), (60, 50), (40, 50), (40, 40)])

gdf_point = gpd.GeoDataFrame(geometry=[point])
gdf_poly = gpd.GeoDataFrame(geometry=[polygon])

print(gdf_point.intersects(gdf_poly))
# 0    False
# dtype: bool
ortho = "+proj=ortho +lon_0=50 +lat_0=45"

fig, axs = plt.subplots(1, 2, figsize=(10, 5))

gdf_poly.set_crs(ortho).plot(ax=axs[0], color='none', edgecolor='black')
gdf_point.set_crs(ortho).plot(ax=axs[0], color='red', marker='o')
axs[0].set_xlim(39, 61)
# (39.0, 61.0)
axs[0].set_ylim(33, 56)
# (33.0, 56.0)
axs[0].grid(True)
axs[0].set_title('s2geometry')

gdf_poly.set_crs("OGC:CRS84").plot(ax=axs[1], color='none', edgecolor='black')
gdf_point.set_crs("OGC:CRS84").plot(ax=axs[1], color='red', marker='o')
axs[1].set_xlim(39, 61)
# (39.0, 61.0)
axs[1].set_ylim(34, 56)
# (34.0, 56.0)
axs[1].set_title('GEOS')
axs[1].grid(True)

plt.show()

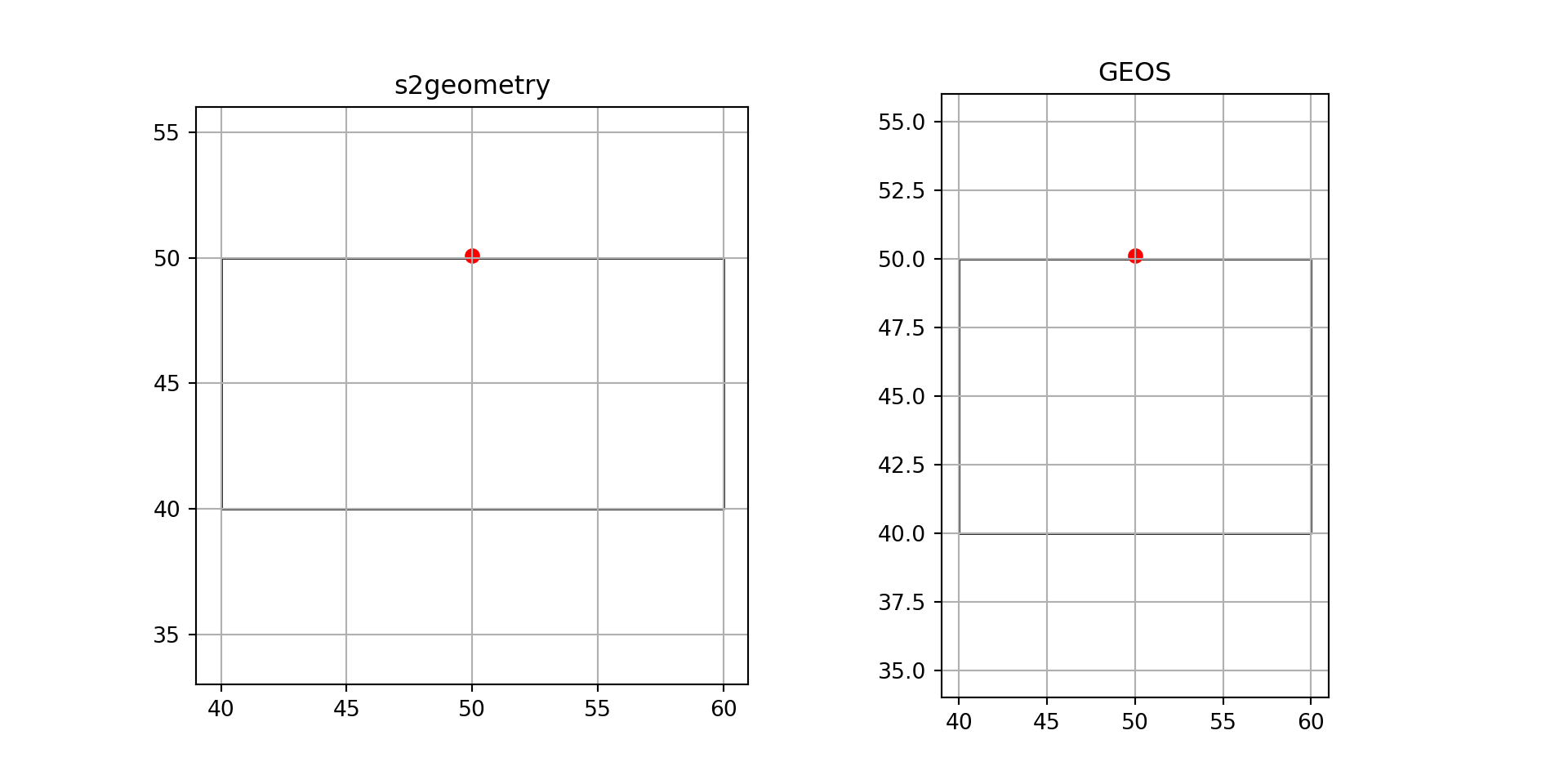

Intersection depends on whether we use geodesics/great circle arcs (left: s2) or Cartesian coordinates (right)

If one wants sf to use ellipsoidal coordinates as if they are Cartesian coordinates, the use of s2 can be switched off:

old <- sf_use_s2(FALSE)
# Spherical geometry (s2) switched off
st_intersects(pol, pt)
# although coordinates are longitude/latitude, st_intersects assumes
# that they are planar
# Sparse geometry binary predicate list of length 1, where the
# predicate was `intersects'
#  1: (empty)
sf_use_s2(old) # restore
# Spherical geometry (s2) switched on

and the intersection is empty, as illustrated by Figure 7.5 (right: straight lines on an equidistant cylindrical projection). The warning indicates the planar assumption for ellipsoidal coordinates.

Use of s2 can be switched off for reasons of performance or compatibility with legacy implementations. The underlying libraries, GEOS for Cartesian and s2geometry for spherical geometry (Figure 1.7) were developed with different motivations, and their use through sf differs in some respects:

  • certain operations may be much faster in one compared to the other,
  • certain functions may be available in only one of them (like st_relate being only present in GEOS),
  • when using transformers, GEOS returns exterior polygon rings noded clockwise (st_sfc(..., check_ring_dir = TRUE) can be used to revert to counter-clockwise), s2geometry retuns them counter-clockwise

7.4 Package stars

Although package sp has always had limited support for raster data, over the last decade R package raster (Hijmans 2023a) has clearly been dominant as the prime package for powerful, flexible, and scalable raster analysis. The raster data model of package raster (and its successor, terra (Hijmans 2023b)) is that of a 2D regular raster, or a set of raster layers (“raster stack”). This aligns with the classical static “GIS view”, where the world is modelled as a set of layers, each representing a different theme. A lot of data available today however is dynamic, and comes as time series of rasters or raster stacks. A raster stack does not meaningfully reflect this, requiring the user to keep a register of which layer represents what.

Also, the raster package and its successor terra do an excellent job in scaling computations up to data sizes no larger than the local storage (the computer’s hard drives), and doing this fast. Recent datasets, however, including satellite imagery, climate model or weather forecasting data, often no longer fit in local storage (Chapter 9). Package spacetime (Pebesma 2012, 2022) did address the analysis of time series of vector geometries or raster grid cells, but did not extend to higher-dimensional arrays or datasets too large to fit in main memory.

Here, we introduce package stars for analysing raster and vector data cubes. The package:

  • allows for representing dynamic (time varying) raster stacks
  • aims at being scalable, also beyond local disk size
  • provides a strong integration of raster functions in the GDAL library
  • handles, in addition to regular grids, rotated, sheared, rectilinear, and curvilinear rasters (Figure 1.6)
  • provides a tight integration with package sf
  • handles array data with non-raster spatial dimensions, the vector data cubes
  • follows the tidyverse design principles

Vector data cubes include for instance time series for simple features, or spatial graph data such as potentially dynamic origin-destination matrices. The concept of spatial vector and raster data cubes was explained in Chapter 6. Irregular spacetime observations can be represented by sftime objects provided by package sftime (Teickner, Pebesma, and Graeler 2022), which extend sf objects with a time column (Section 13.3).

Reading and writing raster data

Raster data typically are read from a file. We use a dataset containing a section of Landsat 7 scene, with the six 30~m-resolution bands (bands 1-5 and 7) for a region covering the city of Olinda, Brazil. We can read the example GeoTIFF file holding a regular, non-rotated grid from the package stars:

tif <- system.file("tif/L7_ETMs.tif", package = "stars")
library(stars)
# Loading required package: abind
(r <- read_stars(tif))
# stars object with 3 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max.
# L7_ETMs.tif     1      54     69 68.9      86  255
# dimension(s):
#      from  to  offset delta            refsys point x/y
# x       1 349  288776  28.5 SIRGAS 2000 / ... FALSE [x]
# y       1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE [y]
# band    1   6      NA    NA                NA    NA
import rasterio

src = rasterio.open('https://github.com/r-spatial/stars/raw/main/inst/tif/L7_ETMs.tif')

where we see the offset, cell size, coordinate reference system, and dimensions. The dimension table contains the following fields for each dimension:

  • from: starting index
  • to: ending index
  • offset: dimension value at the start (edge) of the first pixel
  • delta: cell size; negative delta values indicate that pixel index increases with decreasing dimension values
  • refsys: reference system
  • point: logical, indicates whether cell values have point support or cell support
  • x/y: indicates whether a dimension is associated with a spatial raster x- or y-axis

One further field, values, is hidden here as it is not used. For regular, rotated, or sheared grids or other regularly discretised dimensions (such as time), offset and delta are not NA; for irregular cases, offset and delta are NA and the values property contains one of:

  • in case of a rectilinear spatial raster or irregular time dimension, the sequence of values or intervals
  • in case of a vector data cube, geometries associated with the spatial dimension
  • in case of a curvilinear raster, the matrix with coordinate values for each raster cell
  • in case of a discrete dimension, the band names or labels associated with the dimension values

The object r is of class stars and is a simple list of length one, holding a three-dimensional array:

length(r)
# [1] 1
class(r[[1]])
# [1] "array"
dim(r[[1]])
#    x    y band
#  349  352    6
import rasterio

src = rasterio.open('https://github.com/r-spatial/stars/raw/main/inst/tif/L7_ETMs.tif')
print(src.count)
# 6
print(src.width)
# 349
print(src.height)
# 352

and in addition holds an attribute with a dimensions table with all the metadata required to know what the array dimensions refer to, obtained by

st_dimensions(r)

We can get the spatial extent of the array by

st_bbox(r)
#    xmin    ymin    xmax    ymax
#  288776 9110729  298723 9120761

Raster data can be written to the local disk using write_stars:

tf <- tempfile(fileext = ".tif")
write_stars(r, tf)

where again the data format (in this case, GeoTIFF) is derived from the file extension. As for simple features, reading and writing uses the GDAL library; the list of available drivers for raster data is obtained by

st_drivers("raster")

Subsetting stars data cubes

Data cubes can be subsetted using the [ operator, or using tidyverse verbs. The first option uses [ with the following comma-separated arguments:

  • attributes first (by name, index, or logical vector)
  • followed by each dimension.

This means that r[1:2, 101:200,, 5:10] selects from r attributes 1-2, index 101-200 for dimension 1, and index 5-10 for dimension 3; omitting dimension 2 means that no subsetting takes place. For attributes, attribute name, index or logical vectors can be used. For dimensions, logical vectors are not supported. Selecting discontinuous ranges is supported only when it is a regular sequence. By default, drop is FALSE, when set to TRUE dimensions with a single value are dropped:

r[,1:100, seq(1, 250, 5), 4] |> dim()
#    x    y band
#  100   50    1
r[,1:100, seq(1, 250, 5), 4, drop = TRUE] |> dim()
#   x   y
# 100  50
band = src.read(4)
subset = band[:100, :250:5]

For selecting particular ranges of dimension values, one can use filter (after loading dplyr):

library(dplyr, warn.conflicts = FALSE)
filter(r, x > 289000, x < 290000)
# stars object with 3 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max.
# L7_ETMs.tif     5      51     63 64.3      75  242
# dimension(s):
#      from  to  offset delta            refsys point x/y
# x       1  35  289004  28.5 SIRGAS 2000 / ... FALSE [x]
# y       1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE [y]
# band    1   6       1     1                NA    NA

which changes the offset of the \(x\) dimension. Particular cube slices can also be obtained with slice, as in

slice(r, band, 3)
# stars object with 2 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max.
# L7_ETMs.tif    21      49     63 64.4      77  255
# dimension(s):
#   from  to  offset delta            refsys point x/y
# x    1 349  288776  28.5 SIRGAS 2000 / ... FALSE [x]
# y    1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE [y]

which drops the singular dimension band. mutate can be used on stars objects to add new arrays as functions of existing ones, transmute drops existing ones.

Cropping

Further subsetting can be done using spatial objects of class sf, sfc or bbox, for instance

b <- st_bbox(r) |>
    st_as_sfc() |>
    st_centroid() |>
    st_buffer(units::set_units(500, m))
r[b]
# stars object with 3 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max. NA's
# L7_ETMs.tif    22      54     66 67.7    78.2  174 2184
# dimension(s):
#      from  to  offset delta            refsys point x/y
# x     157 193  288776  28.5 SIRGAS 2000 / ... FALSE [x]
# y     159 194 9120761 -28.5 SIRGAS 2000 / ... FALSE [y]
# band    1   6      NA    NA                NA    NA

selects the circular centre region with a diameter of 500 metre, which for the first band is shown in Figure 7.6,

Code
plot(r[b][,,,1], reset = FALSE)
plot(b, border = 'brown', lwd = 2, col = NA, add = TRUE)

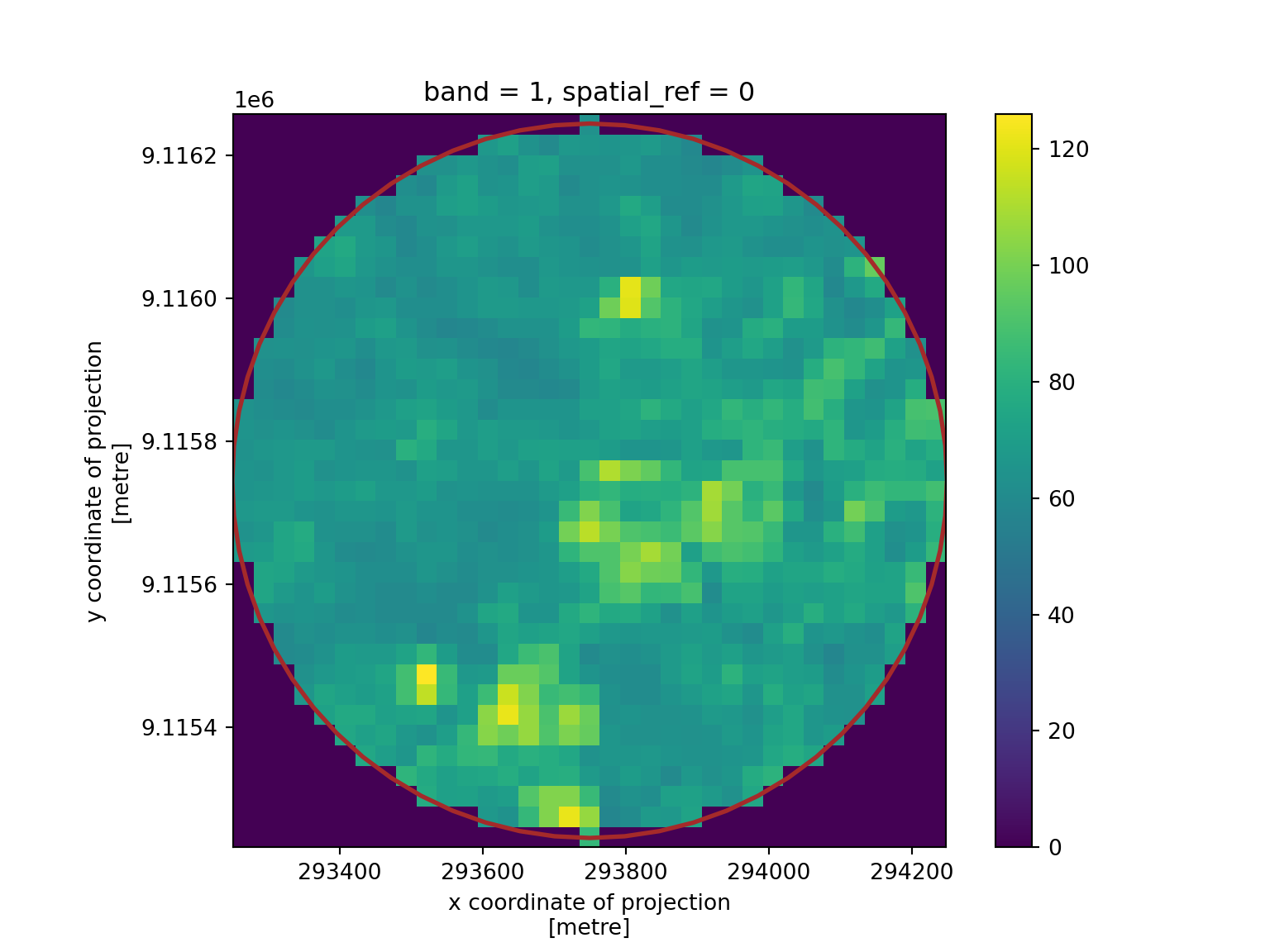

Figure 7.6: Circular centre region of the Landsat 7 scene (band 1)

where we see that pixels outside the spatial object are assigned NA values. This object still has dimension indexes relative to the offset and delta values of r; we can reset these to a new offset with

r[b] |> st_normalize() |> st_dimensions()
#      from to  offset delta            refsys point x/y
# x       1 37  293222  28.5 SIRGAS 2000 / ... FALSE [x]
# y       1 36 9116258 -28.5 SIRGAS 2000 / ... FALSE [y]
# band    1  6      NA    NA                NA    NA

By default, the resulting raster is cropped to the extent of the selection object; an object with the same dimensions as the input object is obtained with

r[b, crop = FALSE]
# stars object with 3 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max.   NA's
# L7_ETMs.tif    22      54     66 67.7    78.2  174 731280
# dimension(s):
#      from  to  offset delta            refsys point x/y
# x       1 349  288776  28.5 SIRGAS 2000 / ... FALSE [x]
# y       1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE [y]
# band    1   6      NA    NA                NA    NA

Cropping a stars object can alternatively be done directly with st_crop, as in

st_crop(r, b)

Redimensioning and combining stars objects

Package stars uses package abind (Plate and Heiberger 2016) for a number of array manipulations. One of them is aperm which transposes an array by permuting it. A method for stars objects is provided, and

aperm(r, c(3, 1, 2))
# stars object with 3 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max.
# L7_ETMs.tif     1      54     69 68.9      86  255
# dimension(s):
#      from  to  offset delta            refsys point x/y
# band    1   6      NA    NA                NA    NA
# x       1 349  288776  28.5 SIRGAS 2000 / ... FALSE [x]
# y       1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE [y]

permutes the order of dimensions of the resulting object.

Attributes and dimensions can be swapped, using split and merge:

(rs <- split(r))
# stars object with 2 dimensions and 6 attributes
# attribute(s):
#     Min. 1st Qu. Median Mean 3rd Qu. Max.
# X1    47      67     78 79.1      89  255
# X2    32      55     66 67.6      79  255
# X3    21      49     63 64.4      77  255
# X4     9      52     63 59.2      75  255
# X5     1      63     89 83.2     112  255
# X6     1      32     60 60.0      88  255
# dimension(s):
#   from  to  offset delta            refsys point x/y
# x    1 349  288776  28.5 SIRGAS 2000 / ... FALSE [x]
# y    1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE [y]
merge(rs, name = "band") |> setNames("L7_ETMs")
# stars object with 3 dimensions and 1 attribute
# attribute(s):
#          Min. 1st Qu. Median Mean 3rd Qu. Max.
# L7_ETMs     1      54     69 68.9      86  255
# dimension(s):
#      from  to  offset delta            refsys point    values x/y
# x       1 349  288776  28.5 SIRGAS 2000 / ... FALSE      NULL [x]
# y       1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE      NULL [y]
# band    1   6      NA    NA                NA    NA X1,...,X6

split distributes the band dimension over six attributes of a two-dimensional array, merge reverses this operation. st_redimension can be used for more generic operations, such as splitting a single array dimension over two new dimensions:

st_redimension(r, c(x = 349, y = 352, b1 = 3, b2 = 2))
# stars object with 4 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max.
# L7_ETMs.tif     1      54     69 68.9      86  255
# dimension(s):
#    from  to  offset delta            refsys point x/y
# x     1 349  288776  28.5 SIRGAS 2000 / ... FALSE [x]
# y     1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE [y]
# b1    1   3      NA    NA                NA    NA
# b2    1   2      NA    NA                NA    NA

Multiple stars object with identical dimensions can be combined using c. By default, the arrays are combined as additional attributes, but by specifying an along argument, the arrays are merged along a new dimension:

c(r, r, along = "new_dim")
# stars object with 4 dimensions and 1 attribute
# attribute(s), summary of first 1e+05 cells:
#              Min. 1st Qu. Median Mean 3rd Qu. Max.
# L7_ETMs.tif    47      65     76 77.3      87  255
# dimension(s):
#         from  to  offset delta            refsys point x/y
# x          1 349  288776  28.5 SIRGAS 2000 / ... FALSE [x]
# y          1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE [y]
# band       1   6      NA    NA                NA    NA
# new_dim    1   2      NA    NA                NA    NA

the use of this is illustrated in Section 7.5.2.

Extracting point samples, aggregating

A very common use case for raster data cube analysis is the extraction of values at certain locations, or computing aggregations over certain geometries. st_extract extracts point values. We will do this for a few randomly sampled points over the bounding box of r:

set.seed(115517)
pts <- st_bbox(r) |> st_as_sfc() |> st_sample(20)
(e <- st_extract(r, pts))
# stars object with 2 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max.
# L7_ETMs.tif    12    41.8     63   61    80.5  145
# dimension(s):
#          from to            refsys point
# geometry    1 20 SIRGAS 2000 / ...  TRUE
# band        1  6                NA    NA
#                                           values
# geometry POINT (293002 ...,...,POINT (290941 ...
# band                                        NULL

which results in a vector data cube with 20 points and 6 bands. (Setting the seed guarantees an identical sample when reproducing, it should not be set generate further randomly generated points.)

Another way of extracting information from data cubes is by aggregating it. One way of doing this is by spatially aggregating values over spatial polygons or lines (Section 6.4). We can for instance compute the maximum pixel value for each of the six bands and for each of the three circles shown in Figure 1.4 (d) by

circles <- st_sample(st_as_sfc(st_bbox(r)), 3) |>
    st_buffer(500)
aggregate(r, circles, max)
# stars object with 2 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max.
# L7_ETMs.tif    73    94.2    117  121     142  205
# dimension(s):
#          from to            refsys point
# geometry    1  3 SIRGAS 2000 / ... FALSE
# band        1  6                NA    NA
#                                           values
# geometry POLYGON ((2913...,...,POLYGON ((2921...
# band                                        NULL

which gives a (vector) data cube with three geometries and six bands. Aggregation over a temporal dimension is done by passing a time variable as the second argument to aggregate, as a

  • set of time stamps indicating the start of time intervals,
  • set of time intervals defined by make_intervals, or
  • time period like "weeks", "5 days", or "years".

Predictive models

The typical model prediction workflow in R is as follows:

  • use a data.frame with response and predictor variables (covariates)
  • create a model object based on this data.frame
  • call predict with this model object and the data.frame with target predictor variable values

Package stars provides a predict method for stars objects that essentially wraps the last step, by creating the data.frame, calling the predict method for that, and reconstructing a stars object with the predicted values.

We will illustrate this with a trivial two-class example mapping land from sea in the example Landsat dataset, using the sample points extracted above, shown in Figure 7.7.

Code
plot(r[,,,1], reset = FALSE)
col <- rep("yellow", 20)
col[c(8, 14, 15, 18, 19)] = "red"
st_as_sf(e) |> st_coordinates() |> text(labels = 1:20, col = col)

Figure 7.7: Randomly chosen sample locations for training data; red: water, yellow: land

From this figure, we read “by eye” that the points 8, 14, 15, 18, and 19 are on water, the others on land. Using a linear discriminant (“maximum likelihood”) classifier, we find model predictions as shown in Figure 7.8 by

rs <- split(r)
trn <- st_extract(rs, pts)
trn$cls <- rep("land", 20)
trn$cls[c(8, 14, 15, 18, 19)] <- "water"
model <- MASS::lda(cls ~ ., st_drop_geometry(trn))
pr <- predict(rs, model)

Here, we used the MASS:: prefix to avoid loading MASS, as that would mask select from dplyr. The split step is needed to convert the band dimension into attributes, so that they are offered as a set of predictors.

Code
plot(pr[1], key.pos = 4, key.width = lcm(3.5), key.length = lcm(2))

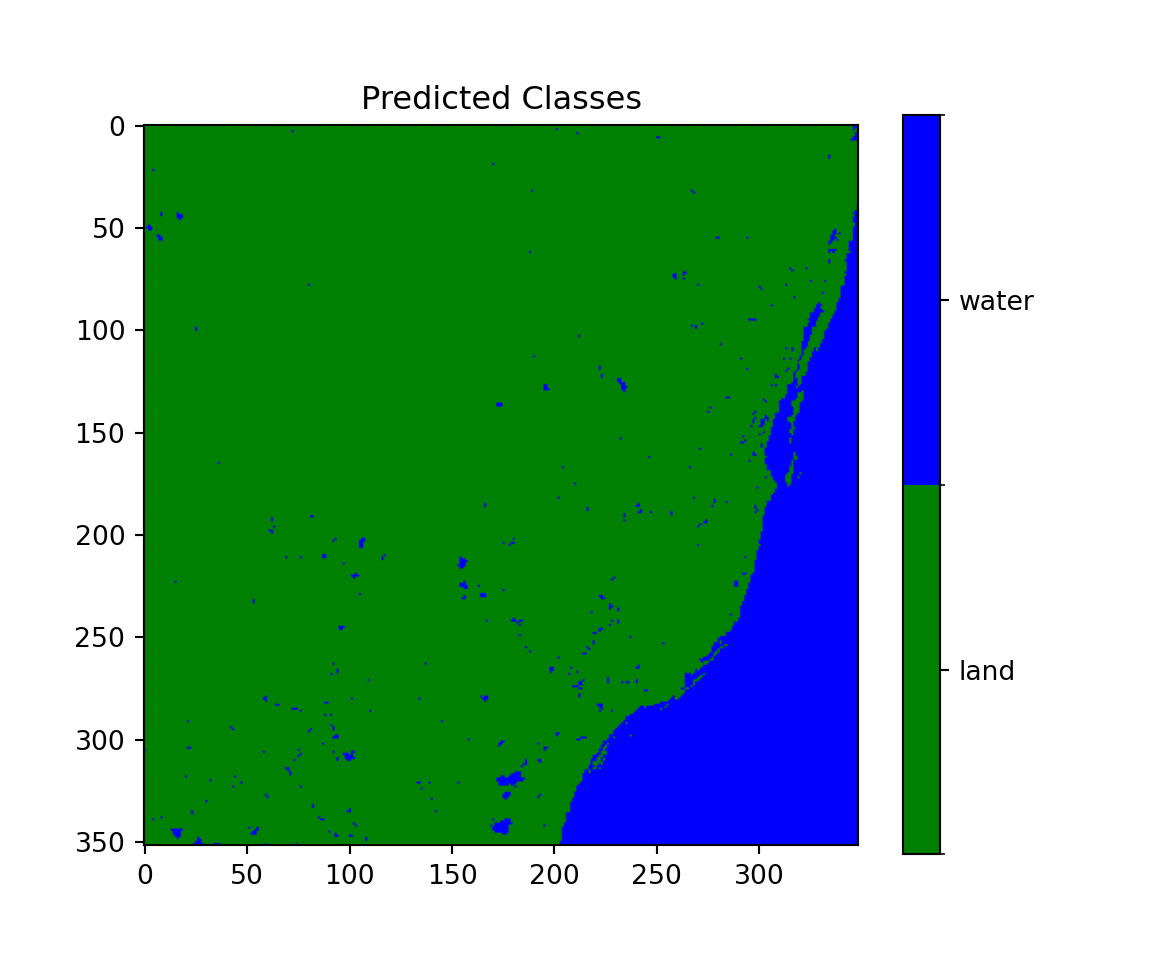

Figure 7.8: Linear discriminant classifier for land/water, based on training data of Figure 7.7

We also see that the layer plotted in Figure 7.8 is a factor variable, with class labels.

Plotting raster data

Code
plot(r)

Figure 7.9: Six 30 m Landsat bands downsampled to 90m for Olinda, Br.

We can use the base plot method for stars objects, where the plot created with plot(r) is shown in Figure 7.9. The default colour scale uses grey tones and stretches them such that colour breaks correspond to data quantiles over all bands (“histogram equalization”). Setting breaks = "equal" gives equal width colour breaks; alternatively a sequence of numeric break values can be given. A more familiar view may be the RGB or false colour composite shown in Figure 7.10.

Code
par(mfrow = c(1, 2))
plot(r, rgb = c(3,2,1), reset = FALSE, main = "RGB")    # rgb
plot(r, rgb = c(4,3,2), main = "False colour (NIR-R-G)") # false colour

Figure 7.10: Two colour composites

Further details and options are given in Chapter 8.

Analysing raster data

Element-wise mathematical functions (Section 6.3.2) on stars objects are just passed on to the arrays. This means that we can call functions and create expressions:

log(r)
# stars object with 3 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max.
# L7_ETMs.tif     0    3.99   4.23 4.12    4.45 5.54
# dimension(s):
#      from  to  offset delta            refsys point x/y
# x       1 349  288776  28.5 SIRGAS 2000 / ... FALSE [x]
# y       1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE [y]
# band    1   6      NA    NA                NA    NA
r + 2 * log(r)
# stars object with 3 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max.
# L7_ETMs.tif     1      62   77.5 77.1    94.9  266
# dimension(s):
#      from  to  offset delta            refsys point x/y
# x       1 349  288776  28.5 SIRGAS 2000 / ... FALSE [x]
# y       1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE [y]
# band    1   6      NA    NA                NA    NA

or even mask out certain values:

r2 <- r
r2[r < 50] <- NA
r2
# stars object with 3 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max.   NA's
# L7_ETMs.tif    50      64     75   79      90  255 149170
# dimension(s):
#      from  to  offset delta            refsys point x/y
# x       1 349  288776  28.5 SIRGAS 2000 / ... FALSE [x]
# y       1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE [y]
# band    1   6      NA    NA                NA    NA

or unmask areas:

r2[is.na(r2)] <- 0
r2
# stars object with 3 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max.
# L7_ETMs.tif     0      54     69   63      86  255
# dimension(s):
#      from  to  offset delta            refsys point x/y
# x       1 349  288776  28.5 SIRGAS 2000 / ... FALSE [x]
# y       1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE [y]
# band    1   6      NA    NA                NA    NA

Dimension-wise, we can apply functions to selected array dimensions (Section 6.3.3) of stars objects similar to how apply does this to arrays. For instance, we can compute for each pixel the mean of the six band values by

st_apply(r, c("x", "y"), mean)
# stars object with 2 dimensions and 1 attribute
# attribute(s):
#       Min. 1st Qu. Median Mean 3rd Qu. Max.
# mean  25.5    53.3   68.3 68.9      82  255
# dimension(s):
#   from  to  offset delta            refsys point x/y
# x    1 349  288776  28.5 SIRGAS 2000 / ... FALSE [x]
# y    1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE [y]

A more meaningful function would for instance compute the NDVI (normalised differenced vegetation index):

ndvi <- function(b1, b2, b3, b4, b5, b6) (b4 - b3)/(b4 + b3)
st_apply(r, c("x", "y"), ndvi)
# stars object with 2 dimensions and 1 attribute
# attribute(s):
#         Min. 1st Qu.  Median    Mean 3rd Qu.  Max.
# ndvi  -0.753  -0.203 -0.0687 -0.0643   0.187 0.587
# dimension(s):
#   from  to  offset delta            refsys point x/y
# x    1 349  288776  28.5 SIRGAS 2000 / ... FALSE [x]
# y    1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE [y]

Alternatively, one could have defined

ndvi2 <- function(x) (x[4]-x[3])/(x[4]+x[3])

which is more convenient if the number of bands is large, but also much slower than ndvi as it needs to be called for every pixel whereas ndvi can be called once for all pixels, or for large chunks of pixels. The mean for each band over the whole image is computed by

st_apply(r, c("band"), mean) |> as.data.frame()
#   band mean
# 1    1 79.1
# 2    2 67.6
# 3    3 64.4
# 4    4 59.2
# 5    5 83.2
# 6    6 60.0

the result of which is small enough to be printed here as a data.frame. In these two examples, entire dimensions disappear. Sometimes, this does not happen (Section 6.3.2); we can for instance compute the three quartiles for each band

st_apply(r, c("band"), quantile, c(.25, .5, .75))
# stars object with 2 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max.
# L7_ETMs.tif    32    60.8   66.5 69.8    78.8  112
# dimension(s):
#          from to        values
# quantile    1  3 25%, 50%, 75%
# band        1  6          NULL

and see that this creates a new dimension, quantile, with three values. Alternatively, the three quantiles over the six bands for each pixel are obtained by

st_apply(r, c("x", "y"), quantile, c(.25, .5, .75))
# stars object with 3 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max.
# L7_ETMs.tif     4      55   69.2 67.2    81.2  255
# dimension(s):
#          from  to  offset delta            refsys point
# quantile    1   3      NA    NA                NA    NA
# x           1 349  288776  28.5 SIRGAS 2000 / ... FALSE
# y           1 352 9120761 -28.5 SIRGAS 2000 / ... FALSE
#                 values x/y
# quantile 25%, 50%, 75%
# x                 NULL [x]
# y                 NULL [y]

Curvilinear rasters

There are several reasons why non-regular rasters occur (Figure 1.6). For one, when the data is Earth-bound, a regular raster does not fit the Earth’s surface, which is curved. Other reasons are:

  • when we convert or transform a regular raster data into another coordinate reference system, it will become curvilinear unless we resample (warp; Section 7.8); warping always comes at the cost of some loss of data and is not reversible
  • observation may lead to irregular rasters: for lower-level satellite products, we may have a regular raster in the direction of the satellite (not aligned with \(x\) or \(y\)), and rectilinear in the direction perpendicular to that (e.g., when the sensor discretises the viewing angle in equal parts)

GDAL utils

The GDAL library typically ships with a number of executable binaries, the GDAL command line utilities for data translation and processing. Several of these utilities (all except for those written in Python) are also available as C functions in the GDAL library, through the “GDAL Algorithms C API”. If an R package like sf that links to the GDAL library uses these C API algorithms, it means that the user no longer needs to install any GDAL binary command line utilities in addition to the R package.

Package sf allows calling these C API algorithms through function gdal_utils, where the first argument is the name of the utility (stripped from the gdal prefix):

  • info prints information on GDAL (raster) datasets
  • warp warps a raster to a new raster, possibly in another CRS
  • rasterize rasterises a vector dataset
  • translate translates a raster file to another format
  • vectortranslate (for ogr2ogr) translates a vector file to another format
  • buildvrt creates a virtual raster tile (a raster created from several files)
  • demprocessing does various processing steps of digital elevation models (dems)
  • nearblack converts nearly black/white borders to black
  • grid creates a regular grid from scattered data
  • mdiminfo prints information on a multi-dimensional array
  • mdimtranslate translates a multi-dimensional array into another format

These utilities work on files, and not directly on sf or stars objects. However, stars_proxy objects are essentially pointers to files, and other objects can be written to file. Several of these utilities are (always or optionally) used, for example by st_mosaic, st_warp, or st_write. R package gdalUtilities (O’Brien 2022) provides further wrapper functions around sf::gdal_utils with function argument names matching the command line arguments of the binary utils.

7.5 Vector data cube examples

Example: aggregating air quality time series

We use a small excert from the European air quality data base to illustrate aggregation operations on vector data cubes. The same data source was used by Gräler, Pebesma, and Heuvelink (2016), and will be used in Chapter 12 and Chapter 13. Daily average PM\(_{10}\) values were computed for rural background stations in Germany, over the period 1998-2009.

We can create a stars object from the air matrix, the dates Date vector and the stations SpatialPoints objects by

load("data/air.rda") # this loads several datasets in .GlobalEnv
dim(air)
# space  time
#    70  4383
stations |>
    st_as_sf(coords = c("longitude", "latitude"), crs = 4326) |>
    st_geometry() -> st
d <- st_dimensions(station = st, time = dates)
(aq <- st_as_stars(list(PM10 = air), dimensions = d))
# stars object with 2 dimensions and 1 attribute
# attribute(s):
#       Min. 1st Qu. Median Mean 3rd Qu. Max.   NA's
# PM10     0    9.92   14.8 17.7      22  274 157659
# dimension(s):
#         from   to     offset  delta refsys point
# station    1   70         NA     NA WGS 84  TRUE
# time       1 4383 1998-01-01 1 days   Date FALSE
#                                          values
# station POINT (9.59 53.7),...,POINT (9.45 49.2)
# time                                       NULL

We can see from Figure 7.11 that the time series are quite long, but also have large missing value gaps. Figure 7.12 shows the spatial distribution of measurement stations along with mean PM\(_{10}\) values.

Code
par(mar = c(5.1, 4.1, 0.3, 0.1))
image(aperm(log(aq), 2:1), main = NULL)

Figure 7.11: Space time diagram of PM\(_{10}\) measurements by time and station
Code
de_nuts1 <- read_sf("data/de_nuts1.gpkg")
st_as_sf(st_apply(aq, 1, mean, na.rm = TRUE)) |>
    plot(reset = FALSE, pch = 16, extent = de_nuts1)
st_union(de_nuts1) |> plot(add = TRUE)

Figure 7.12: Locations of PM\(_{10}\) measurement stations, showing mean values

We can aggregate these station time series to area means, mostly as a simple exercise. For this, we use the aggregate method for stars objects

(a <- aggregate(aq, de_nuts1, mean, na.rm = TRUE))
# stars object with 2 dimensions and 1 attribute
# attribute(s):
#       Min. 1st Qu. Median Mean 3rd Qu. Max.  NA's
# PM10  1.08    10.9   15.3 17.9    21.8  172 25679
# dimension(s):
#      from   to     offset  delta refsys point
# geom    1   16         NA     NA WGS 84 FALSE
# time    1 4383 1998-01-01 1 days   Date FALSE
#                                       values
# geom MULTIPOLYGON (...,...,MULTIPOLYGON (...
# time                                    NULL

and we can now show the maps for six arbitrarily chosen days (Figure 7.13), using

library(tidyverse)
a |> filter(time >= "2008-01-01", time < "2008-01-07") |>
    plot(key.pos = 4)

Figure 7.13: Areal mean PM\(_{10}\) values, for six days

or create a time series plot of mean values for a single state (Figure 7.14) by

library(xts) |> suppressPackageStartupMessages()
plot(as.xts(a)[,4], main = de_nuts1$NAME_1[4])

Figure 7.14: Areal mean PM\(_{10}\) time series for a single state

Example: Bristol origin-destination data cube

The data used for this example come from Lovelace, Nowosad, and Muenchow (2019), and concern origin-destination (OD) counts: the number of persons going from zone A to zone B, by transportation mode. We have feature geometries in sf object bristol_zones for the 102 origin and destination regions, shown in Figure 7.15.

Code
library(spDataLarge)
plot(st_geometry(bristol_zones), axes = TRUE, graticule = TRUE)
plot(st_geometry(bristol_zones)[33], col = 'red', add = TRUE)

Figure 7.15: Origin destination data zones for Bristol, UK, with zone 33 (E02003043) coloured red

OD counts come in a table bristol_od with non-zero OD pairs as records, and transportation mode as variables:

head(bristol_od)
# # A tibble: 6 × 7
#   o         d           all bicycle  foot car_driver train
#   <chr>     <chr>     <dbl>   <dbl> <dbl>      <dbl> <dbl>
# 1 E02002985 E02002985   209       5   127         59     0
# 2 E02002985 E02002987   121       7    35         62     0
# 3 E02002985 E02003036    32       2     1         10     1
# 4 E02002985 E02003043   141       1     2         56    17
# 5 E02002985 E02003049    56       2     4         36     0
# 6 E02002985 E02003054    42       4     0         21     0

The number of zero OD values is found by subtracting the number of non-zero records from the total number of OD combinations:

nrow(bristol_zones)^2 - nrow(bristol_od)
# [1] 7494

We will form a three-dimensional vector data cube with origin, destination, and transportation mode as dimensions. For this, we first “tidy” the bristol_od table to have origin (o), destination (d), transportation mode (mode), and count (n) as variables, using pivot_longer:

# create O-D-mode array:
bristol_tidy <- bristol_od |>
    select(-all) |>
    pivot_longer(3:6, names_to = "mode", values_to = "n")
head(bristol_tidy)
# # A tibble: 6 × 4
#   o         d         mode           n
#   <chr>     <chr>     <chr>      <dbl>
# 1 E02002985 E02002985 bicycle        5
# 2 E02002985 E02002985 foot         127
# 3 E02002985 E02002985 car_driver    59
# 4 E02002985 E02002985 train          0
# 5 E02002985 E02002987 bicycle        7
# 6 E02002985 E02002987 foot          35

Next, we form the three-dimensional array a, filled with zeroes:

od <- bristol_tidy |> pull("o") |> unique()
nod <- length(od)
mode <- bristol_tidy |> pull("mode") |> unique()
nmode = length(mode)
a = array(0L,  c(nod, nod, nmode),
    dimnames = list(o = od, d = od, mode = mode))
dim(a)
# [1] 102 102   4

We see that the dimensions are named with the zone names (o, d) and the transportation mode name (mode). Every row of bristol_tidy denotes a single array entry, and we can use this to fill the non-zero entries of a using the bristol_tidy table to provide index (o, d and mode) and value (n):

a[as.matrix(bristol_tidy[c("o", "d", "mode")])] <-
        bristol_tidy$n

To be sure that there is not an order mismatch between the zones in bristol_zones and the zone names in bristol_tidy, we can get the right set of zones by:

order <- match(od, bristol_zones$geo_code)
zones <- st_geometry(bristol_zones)[order]

(It happens that the order is already correct, but it is good practice to not assume this.)

Next, with zones and modes we can create a stars dimensions object:

library(stars)
(d <- st_dimensions(o = zones, d = zones, mode = mode))
#      from  to refsys point                                  values
# o       1 102 WGS 84 FALSE MULTIPOLYGON (...,...,MULTIPOLYGON (...
# d       1 102 WGS 84 FALSE MULTIPOLYGON (...,...,MULTIPOLYGON (...
# mode    1   4     NA FALSE                       bicycle,...,train

and finally build a stars object from a and d:

(odm <- st_as_stars(list(N = a), dimensions = d))
# stars object with 3 dimensions and 1 attribute
# attribute(s):
#    Min. 1st Qu. Median Mean 3rd Qu. Max.
# N     0       0      0  4.8       0 1296
# dimension(s):
#      from  to refsys point                                  values
# o       1 102 WGS 84 FALSE MULTIPOLYGON (...,...,MULTIPOLYGON (...
# d       1 102 WGS 84 FALSE MULTIPOLYGON (...,...,MULTIPOLYGON (...
# mode    1   4     NA FALSE                       bicycle,...,train

We can take a single slice through this three-dimensional array, for instance for zone 33 (Figure 7.15), by odm[ , , 33], and plot it with

plot(adrop(odm[,,33]) + 1, logz = TRUE)

Figure 7.16: OD matrix sliced for destination zone 33, by transportation mode

the result of which is shown in Figure 7.16. Subsetting this way, we take all attributes (there is only one: N) since the first argument is empty, we take all origin regions (second argument empty), we take destination zone 33 (third argument), and all transportation modes (fourth argument empty, or missing).

We plotted this particular zone because it has the largest number of travellers as its destination. We can find this out by summing all origins and travel modes by destination:

d <- st_apply(odm, 2, sum)
which.max(d[[1]])
# [1] 33

Other aggregations we can carry out include:

Total transportation by OD (102 x 102):

st_apply(odm, 1:2, sum)
# stars object with 2 dimensions and 1 attribute
# attribute(s):
#      Min. 1st Qu. Median Mean 3rd Qu. Max.
# sum     0       0      0 19.2      19 1434
# dimension(s):
#   from  to refsys point                                  values
# o    1 102 WGS 84 FALSE MULTIPOLYGON (...,...,MULTIPOLYGON (...
# d    1 102 WGS 84 FALSE MULTIPOLYGON (...,...,MULTIPOLYGON (...

Origin totals, by mode:

st_apply(odm, c(1,3), sum)
# stars object with 2 dimensions and 1 attribute
# attribute(s):
#      Min. 1st Qu. Median Mean 3rd Qu. Max.
# sum     1    57.5    214  490     771 2903
# dimension(s):
#      from  to refsys point                                  values
# o       1 102 WGS 84 FALSE MULTIPOLYGON (...,...,MULTIPOLYGON (...
# mode    1   4     NA FALSE                       bicycle,...,train

Destination totals, by mode:

st_apply(odm, c(2,3), sum)
# stars object with 2 dimensions and 1 attribute
# attribute(s):
#      Min. 1st Qu. Median Mean 3rd Qu.  Max.
# sum     0      13    104  490     408 12948
# dimension(s):
#      from  to refsys point                                  values
# d       1 102 WGS 84 FALSE MULTIPOLYGON (...,...,MULTIPOLYGON (...
# mode    1   4     NA FALSE                       bicycle,...,train

Origin totals, summed over modes:

o <- st_apply(odm, 1, sum)

Destination totals, summed over modes (we had this):

d <- st_apply(odm, 2, sum)

We plot o and d together after joining them by

x <- (c(o, d, along = list(od = c("origin", "destination"))))
plot(x, logz = TRUE)

Figure 7.17: Total commutes, summed by origin (left) or destination (right)

the result of which is shown in Figure 7.17.

There is something to say for the argument that such maps give the wrong message, as both amount (colour) and polygon size give an impression of amount. To take out the amount in the count, we can compute densities (count / km\(^2\)), by

library(units)
a <- set_units(st_area(st_as_sf(o)), km^2)
o$sum_km <- o$sum / a
d$sum_km <- d$sum / a
od <- c(o["sum_km"], d["sum_km"], along =
        list(od = c("origin", "destination")))
plot(od, logz = TRUE)

Figure 7.18: Total commutes per square km, by area of origin (left) or destination (right)

shown in Figure 7.18. Another way to normalize these totals would be to divide them by population size.

Tidy array data

The tidy data paper (Wickham 2014) may suggest that such array data should be processed not as an array, but in a long (unnormalised) table form where each row holds (region, class, year, value), and it is always good to be able to do this. For primary handling and storage, however, this is often not an option, because:

  • a lot of array data are collected or generated as array data, for instance by imagery or other sensory devices, or by climate models
  • it is easier to derive the long table form from the array than vice versa
  • the long table form requires much more memory, since the space occupied by dimension values is \(O(\Pi n_i)\), rather than \(O(\Sigma n_i)\), with \(n_i\) the cardinality (size) of dimension \(i\)
  • when missing-valued cells are dropped, the long table form loses the implicit indexing of the array form

To put this argument to the extreme, consider for instance that all image, video and sound data are stored in array form; few people would make a real case for storing them in a long table form instead. Nevertheless, R packages like tsibble (Wang et al. 2022) take this approach, and have to deal with ambiguous ordering of multiple records with identical time steps for different spatial features and index them, which is solved for both automatically by using the array form – at the cost of using dense arrays, in package stars.

Package stars tries to follow the tidy manifesto to handle array sets and has particularly developed support for the case where one or more of the dimensions refer to space and/or time.

File formats for vector data cubes

Regular table forms, including the long table form, are possible but clumsy to use: the origin-destination data example above and Chapter 13 illustrate the complexity of recreating a vector data cube from table forms. Array formats like NetCDF or Zarr are designed for storing array data. They can however be used for any data structure, and carry the risk that files once written are hard to reuse. For vector cubes that have a single geometry dimension that consists of either points, (multi)linestrings or (multi)polygons, the CF conventions (Eaton et al. 2022) describe a way to encode such geometries. stars::read_mdim and stars::write_mdim can read and write vector data cubes following these conventions.

7.6 Raster-to-vector, vector-to-raster

Section 1.3 already showed some examples of raster-to-vector and vector-to-raster conversions. This section will add some code details and examples.

Vector-to-raster

st_as_stars is meant as a method to transform objects into stars objects. However, not all stars objects are raster objects, and the method for sf objects creates a vector data cube with the geometry as its spatial (vector) dimension, and attributes as attributes. When given a feature geometry (sfc) object, st_as_stars will rasterise it, as shown in Section 7.8 and in Figure 7.19.

file <- system.file("gpkg/nc.gpkg", package="sf")
read_sf(file) |>
    st_geometry() |>
    st_as_stars() |>
    plot(key.pos = 4)

Figure 7.19: Rasterising vector geometry using st_as_stars

Here, st_as_stars can be parameterised to control cell size, number of cells, and/or extent. The cell values returned are 0 for cells with centre point outside the geometry and 1 for cell with centre point inside or on the border of the geometry. Rasterising existing features is done using st_rasterize, as also shown in Figure 1.5:

library(dplyr)
read_sf(file) |>
    mutate(name = as.factor(NAME)) |>
    select(SID74, SID79, name) |>
    st_rasterize()
# stars object with 2 dimensions and 3 attributes
# attribute(s):
#      SID74           SID79            name
#  Min.   : 0      Min.   : 0      Sampson :  655
#  1st Qu.: 3      1st Qu.: 3      Columbus:  648
#  Median : 5      Median : 6      Robeson :  648
#  Mean   : 8      Mean   :10      Bladen  :  604
#  3rd Qu.:10      3rd Qu.:13      Wake    :  590
#  Max.   :44      Max.   :57      (Other) :30952
#  NA's   :30904   NA's   :30904   NA's    :30904
# dimension(s):
#   from  to   offset      delta refsys point x/y
# x    1 461 -84.3239  0.0192484  NAD27 FALSE [x]
# y    1 141  36.5896 -0.0192484  NAD27 FALSE [y]

Similarly, line and point geometries can be rasterised, as shown in Figure 7.20.

read_sf(file) |>
    st_cast("MULTILINESTRING") |>
    select(CNTY_ID) |>
    st_rasterize() |>
    plot(key.pos = 4)

Figure 7.20: Rasterising the North Carolina county boundaries

7.7 Coordinate transformations and conversions

st_crs

Spatial objects of class sf or stars contain a coordinate reference system that can be retrieved or replaced with st_crs, or can be set or replaced in a pipe with st_set_crs. Coordinate reference systems can be set with an EPSG code, like st_crs(4326) which will be converted to st_crs('EPSG:4326'), or with a PROJ.4 string like "+proj=utm +zone=25 +south", a name like “WGS84”, or a name preceded by an authority like “OGC:CRS84”. Alternatives include a coordinate reference system definition in WKT, WKT-2 (Section 2.5) or PROJJSON. The object returned by st_crs contains two fields:

  • wkt with the WKT-2 representation
  • input with the user input, if any, or a human readable description of the coordinate reference system, if available

Note that PROJ.4 strings can be used to define some coordinate reference systems, but they cannot be used to represent coordinate reference systems. Conversion of a WKT-2 in a crs object to a proj4string using the $proj4string method, as in

x <- st_crs("OGC:CRS84")
x$proj4string
# [1] "+proj=longlat +datum=WGS84 +no_defs"

may succeed but is not in general lossless or invertible. Using PROJ.4 strings, for instance to define a parameterised, projected coordinate reference system is fine as long as it is associated with the WGS84 datum.

st_transform, sf_project

Coordinate transformations or conversions (Section 2.4) for sf or stars objects are carried out with st_transform, which takes as its first argument a spatial object of class sf or stars that has a coordinate reference system set, and as a second argument with an crs object (or something that can be converted to it with st_crs). When PROJ finds more than one possibility to transform or convert from the source crs to the target crs, it chooses the one with the highest declared accuracy. More fine-grained control over the options is explained in Section 7.7.5. For stars objects with regular raster dimensions, st_transform will only transform coordinates and always result in a curvilinear grid. st_warp can be used to create a regular raster in a new coordinate reference system, using regridding (Section 7.8).

A lower-level function to transform or convert coordinates not in sf or stars objects is sf_project: it takes a matrix with coordinates and a source and target crs, and it returns transformed or converted coordinates.

sf_proj_info

Function sf_proj_info can be used to query the available projections, ellipsoids, units and prime meridians available in the PROJ software. It takes a single parameter, type, which can have the following values:

  • type = "proj" lists the short and long names of available projections; short names can be used in a “+proj=name” string
  • type = "ellps" lists the available ellipses, with name, long name, and ellipsoidal parameters
  • type = "units" lists the available length units, with conversion constant to meters
  • type = "prime_meridians" lists the prime meridians with their position with respect to the Greenwich meridian

Datum grids, proj.db, cdn.proj.org, local cache

Datum grids (Section 2.4) can be installed locally, or be read from the PROJ datum grid CDN at https://cdn.proj.org/. If installed locally, they are read from the PROJ search path, which is shown by

sf_proj_search_paths()
# [1] "/home/edzer/.local/share/proj" "/usr/share/proj"

The main PROJ database is proj.db, an sqlite3 database typically found at

paste0(tail(sf_proj_search_paths(), 1), .Platform$file.sep,
       "proj.db")
# [1] "/usr/share/proj/proj.db"

which can be read. The version of the snapshot of the EPSG database included in each PROJ release is stated in the "metadata" table of proj.db; the version of the PROJ runtime used by sf is shown by

sf_extSoftVersion()["PROJ"]
#    PROJ
# "9.1.1"

If for a particular coordinate transformation datum grids are not locally found, PROJ will search for online datum grids in the PROJ CDN when

sf_proj_network()
# [1] FALSE

returns TRUE. By default it is set to FALSE, but

sf_proj_network(TRUE)
# [1] "https://cdn.proj.org"

sets it to TRUE and returns the URL of the network resource used. This resource can also be set to another resource, that may be faster or less limited.

After querying a datum grid on the CDN, PROJ writes the portion of the grid queried (not, by default, the entire grid) to a local cache, which is another sqlite3 database found locally in a user directory that is listed by

list.files(sf_proj_search_paths()[1], full.names = TRUE)
# [1] "/home/edzer/.local/share/proj/cache.db"

and that will be searched first in subsequent datum grid queries.

Transformation pipelines

Internally, PROJ uses a so-called coordinate operation pipeline, to represent the sequence of operations to get from a source CRS to a target CRS. Given multiple options to go from source to target, st_transform chooses the one with highest accuracy. We can query the options available by sf_proj_pipelines:

(p <- sf_proj_pipelines("OGC:CRS84", "EPSG:22525"))
# Candidate coordinate operations found:  5
# Strict containment:     FALSE
# Axis order auth compl:  FALSE
# Source:  OGC:CRS84
# Target:  EPSG:22525
# Best instantiable operation has accuracy: 2 m
# Description: axis order change (2D) + Inverse of Corrego Alegre
#              1970-72 to WGS 84 (2) + UTM zone 25S
# Definition:  +proj=pipeline +step +proj=unitconvert +xy_in=deg
#              +xy_out=rad +step +inv +proj=hgridshift
#              +grids=br_ibge_CA7072_003.tif +step
#              +proj=utm +zone=25 +south +ellps=intl

and see that pipeline with the highest accuracy is summarised; we can see that it specifies use of a datum grid. Had we not switched on the network search, we would have obtained a different result:

sf_proj_network(FALSE)
# character(0)
sf_proj_pipelines("OGC:CRS84", "EPSG:22525")
# Candidate coordinate operations found:  5
# Strict containment:     FALSE
# Axis order auth compl:  FALSE
# Source:  OGC:CRS84
# Target:  EPSG:22525
# Best instantiable operation has accuracy: 2 m
# Description: axis order change (2D) + Inverse of Corrego Alegre
#              1970-72 to WGS 84 (2) + UTM zone 25S
# Definition:  +

and a report that a datum grid is missing. The object returned by sf_proj_pipelines is a sub-classed data.frame, with columns

names(p)
# [1] "id"           "description"  "definition"   "has_inverse"
# [5] "accuracy"     "axis_order"   "grid_count"   "instantiable"
# [9] "containment"

and we can list for instance the accuracies by

p |> pull(accuracy)
# [1]  2  5  5  8 NA

Here, NA refers to “ballpark accuracy”, which may be anything in the 30-120 m range:

p |> filter(is.na(accuracy))
# Candidate coordinate operations found:  1
# Strict containment:     FALSE
# Axis order auth compl:  FALSE
# Source:  OGC:CRS84
# Target:  EPSG:22525
# Best instantiable operation has only ballpark accuracy
# Description: Ballpark geographic offset from WGS 84 (CRS84) to
#              Corrego Alegre 1970-72 + UTM zone 25S
# Definition:  +proj=pipeline +step +proj=unitconvert +xy_in=deg
#              +xy_out=rad +step +proj=utm +zone=25
#              +south +ellps=intl

The default, most accurate pipeline chosen by st_transform can be overridden by specifying pipeline argument, as selected from the set of options in p$definition.

Axis order and direction

As mentioned in Section 2.5, EPSG:4326 defines the first axis to be associated with latitude and the second with longitude; this is also the case for a number of other ellipsoidal coordinate reference systems. Although this is how the authority (EPSG) prescribes this, it is not how most datasets are currently stored. As most other software, package sf by default ignores this and interprets ellipsoidal coordinate pairs as (longitude, latitude) by default. If however data needs to be read from a data source that is compliant to the authority, for instance from a WFS service, one can set

st_axis_order(TRUE)

to globally instruct sf, when calling GDAL and PROJ routines, that authority compliance (latitude, longitude order) is assumed. It is anticipated that problems may happen in case of authority compliance, for instance when with plotting data. The plot method for sf objects respects the axis order flag and will swap coordinates using the transformation pipeline "+proj=pipeline +step +proj=axisswap +order=2,1" before plotting them, but geom_sf in ggplot2 has not been modified to do this. As mentioned earlier, the axis order ambiguity of EPSG:4326 is resolved by replacing it with OGC:CRS84.

Independent from the axis order, not all coordinate reference systems have an axis direction that is positive in North and East directions. Most plotting functions in R will not work with data that have axes defined in opposite directions. Information on axes directions and units can be retrieved by

st_crs(4326)$axes
#                 name orientation
# 1  Geodetic latitude           1
# 2 Geodetic longitude           3
st_crs(4326)$ud_unit
# 1 [°]
st_crs("EPSG:2053")$axes
#       name orientation
# 1  Westing           4
# 2 Southing           2
st_crs("EPSG:2053")$ud_unit
# 1 [m]

7.8 Transforming and warping rasters

When using st_transform on a raster dataset, as in

tif <- system.file("tif/L7_ETMs.tif", package = "stars")
read_stars(tif) |>
    st_transform('OGC:CRS84')
# stars object with 3 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max.
# L7_ETMs.tif     1      54     69 68.9      86  255
# dimension(s):
#      from  to refsys point                          values x/y
# x       1 349 WGS 84 FALSE [349x352] -34.9165,...,-34.8261 [x]
# y       1 352 WGS 84 FALSE  [349x352] -8.0408,...,-7.94995 [y]
# band    1   6     NA    NA                            NULL
# curvilinear grid

we see that a curvilinear is created, which means that for every grid cell the coordinates are computed in the new CRS, which no longer form a regular grid. Plotting such data is extremely slow, as small polygons are computed for every grid cell and then plotted. The advantage of this is that no information is lost: grid cell values remain identical after the projection.

When we start with a raster on a regular grid and want to obtain a regular grid in a new coordinate reference system, we need to warp the grid: we need to recreate a grid at new locations and use some rule to assign values to new grid cells. Rules can involve using the nearest value or using some form of interpolation. This operation is not lossless and not invertible.

The best approach for warping is to specify the target grid as a stars object. When only a target CRS is specified, default options for the target grid are picked that may be completely inappropriate for the problem at hand. An example workflow that uses only a target CRS is

read_stars(tif) |>
    st_warp(crs = st_crs('OGC:CRS84')) |>
    st_dimensions()
#      from  to   offset        delta refsys x/y
# x       1 350 -34.9166  0.000259243 WGS 84 [x]
# y       1 352 -7.94982 -0.000259243 WGS 84 [y]
# band    1   6       NA           NA     NA

which creates a pretty close raster, but then the transformation is also relatively modest. For a workflow that creates a target raster first, here with exactly the same number of rows and columns as the original raster, one could use:

r <- read_stars(tif)
grd <- st_bbox(r) |>
        st_as_sfc() |>
        st_transform('OGC:CRS84') |>
        st_bbox() |>
        st_as_stars(nx = dim(r)["x"], ny = dim(r)["y"])
st_warp(r, grd)
# stars object with 3 dimensions and 1 attribute
# attribute(s):
#              Min. 1st Qu. Median Mean 3rd Qu. Max. NA's
# L7_ETMs.tif     1      54     69 68.9      86  255 6180
# dimension(s):
#      from  to   offset        delta refsys x/y
# x       1 349 -34.9166  0.000259666 WGS 84 [x]
# y       1 352 -7.94982 -0.000258821 WGS 84 [y]
# band    1   6       NA           NA     NA

where we see that grid resolution in \(x\) and \(y\) directions slightly varies.

7.9 Exercises

Use R to solve the following exercises.

  1. Find the names of the nc counties that intersect LINESTRING(-84 35,-78 35); use [ for this, and as an alternative use st_join for this.
  2. Repeat this after setting sf_use_s2(FALSE), and compute the difference (hint: use setdiff), and colour the counties of the difference using colour ‘#88000088’.
  3. Plot the two different lines in a single plot; note that R will plot a straight line always straight in the projection currently used; st_segmentize can be used to add points on a straight line, or on a great circle for ellipsoidal coordinates.
  4. NDVI, normalised differenced vegetation index, is computed as (NIR-R)/(NIR+R), with NIR the near infrared and R the red band. Read the L7_ETMs.tif file into object x, and distribute the band dimensions over attributes by split(x, "band"). Then, add attribute NDVI to this object by using an expression that uses the NIR (band 4) and R (band 3) attributes directly.
  5. Compute NDVI for the L7_ETMs.tif image by reducing the band dimension, using st_apply and a function ndvi = function(x) { (x[4]-x[3])/(x[4]+x[3]) }. Plot the result, and write the result to a GeoTIFF.
  6. Use st_transform to transform the stars object read from L7_ETMs.tif to OGC:CRS84. Print the object. Is this a regular grid? Plot the first band using arguments axes=TRUE and border=NA, and explain why this takes such a long time.
  7. Use st_warp to warp the L7_ETMs.tif object to OGC:CRS84, and plot the resulting object with axes=TRUE. Why is the plot created much faster than after st_transform?
  8. Using a vector representation of the raster L7_ETMs, plot the intersection with a circular area around POINT(293716 9113692) with radius 75 m, and compute the area-weighted mean pixel values for this circle. Compare the area-weighted values with those obtained by aggregate using the vector data, and by aggregate using the raster data, using exact=FALSE (default) and exact=FALSE. Explain the differences.
